RP410 300DPI BT Printer Installation Guide

Label Installation

Print using phone

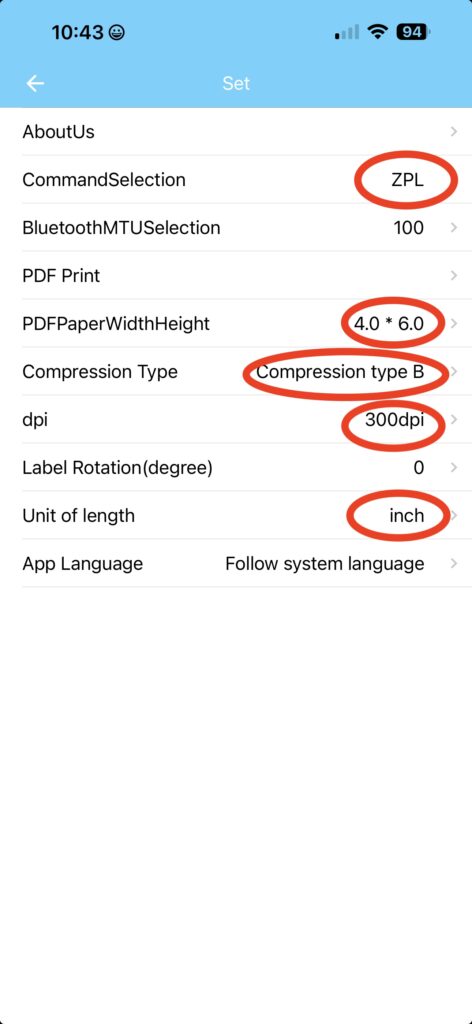

Search and download Elabel ap from app store and follow the video below to print

Windows Installation

Download Windows driver HERE. And then follow the video below.

STEP 1. USB CONNECTION SET UP ( BLUETOOTH PRINT ALSO NEED THIS STEP)

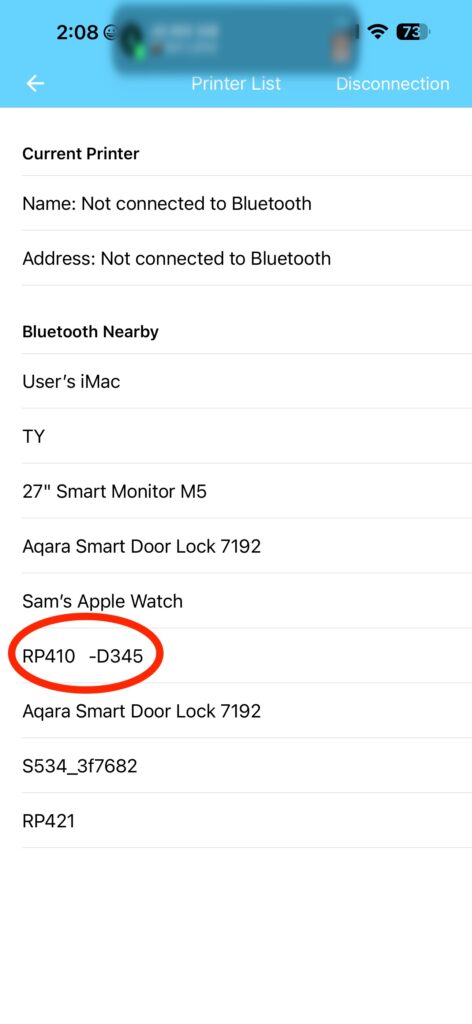

STEP 2.  BLUETOOTH CONNECTION SET UP

Mac Computer Installation

Please download Mac driver HERE.

Mac only can connect the printer via USB connection, Please connect your printer usb cable with mac and turn it on.

Print Waybill label (Windows& Mac)

Download the sample air waybill to test print if you don’t have any airwaybill .

Printing Settings for Shopee
Printing Settings for Lazada
Printing Settings for Qoo10
Printing Settings for Easy Parcel
Printing Settings for Ninja Van dashboard

Ninjia van dashboard air waybill is not optimized for label printer and need to modify before print. Solution:

Download your airway bill pdf file in 1 bills per page format from Ninjia van dashboard and then Go to this link.  Upload you waybill and split one page to 2 pages. Download the new pdf file and print first page.

HOW TO DESIGN LABEL

WINDOWS

 Download FREE label design software and follow the video below to install and use it

This is one more Paid label design software called Live Label, You can download and try Here

MAC

There is no free software currently.  If you want to design a label inclusive of text, shape, barcode and QR code, Please follow this video to use online platform Canva to design and it’s free.

This is one more Paid label design software called Live Label, You can download and try Here

Android:  Search and download Elabel ap from Playstore and follow the video below to print
