Mini Printer Bluetooth Installation Guide

Thank you for purchasing our BT Mini label printer!  We will show you how to install and set up the the label printer below, Please follow patiently.

Windows Installation

ATTENTION:  Please Peel one sticker to check and make sure sticker side Face Up

ATTENTION:  DO NOT connect printer USB Cable to computer before installing the driver!!

Download Windows driver HERE. And then follow the video below to install the driver

Mac Computer Installation

Load the label and connect power

ATTENTION:  Please Peel one sticker to check and make sure sticker side Face Up

Please download Mac driver HERE. And follow the video below to install

Print Waybill label (Windows& Mac)

Download the sample air waybill to test print if you don’t have any airwaybill .

Printing Settings for Shopee
Printing Settings for Lazada
Printing Settings for Qoo10
Printing Settings for Easy Parcel
Printing Settings for Ninja Van dashboard

Ninjia van dashboard air waybill is not optimized for label printer and need to modify before print. Solution:

Download your airway bill pdf file in 1 bills per page format from Ninjia van dashboard and then Go to this link.  Upload you waybill and split one page to 2 pages. Download the new pdf file and print first page.

HOW TO DESIGN LABEL

WINDOWS

 Download FREE label design software and follow the video below to install and use it

This is one more Paid label design software called Live Label, You can download and try Here

MAC

There is no free software currently.  If you want to design a label inclusive of text, shape, barcode and QR code, Please follow this video to use online platform Canva to design and it’s free.

This is one more Paid label design software on Mac called Live Label, You can download and try Here

Print using phone

If your phone has trace together app. Please disable it as It may interfere the bluetooth connection

Phone can use Bluetooth to design custom label and print PDF waybill.

For iPhone, search Elabel in AppStore.

 Android Scan QR code below to download the app

(Please do not download from Google Playstore, Its app has issue)

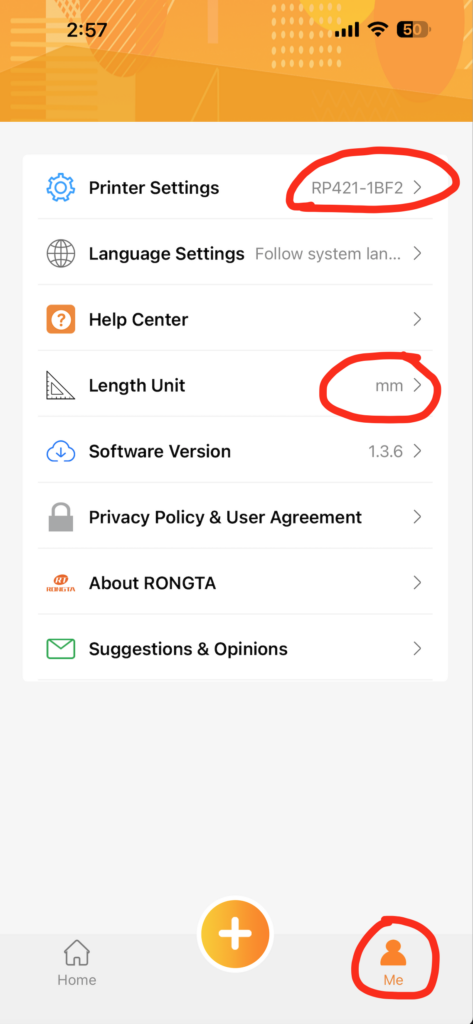

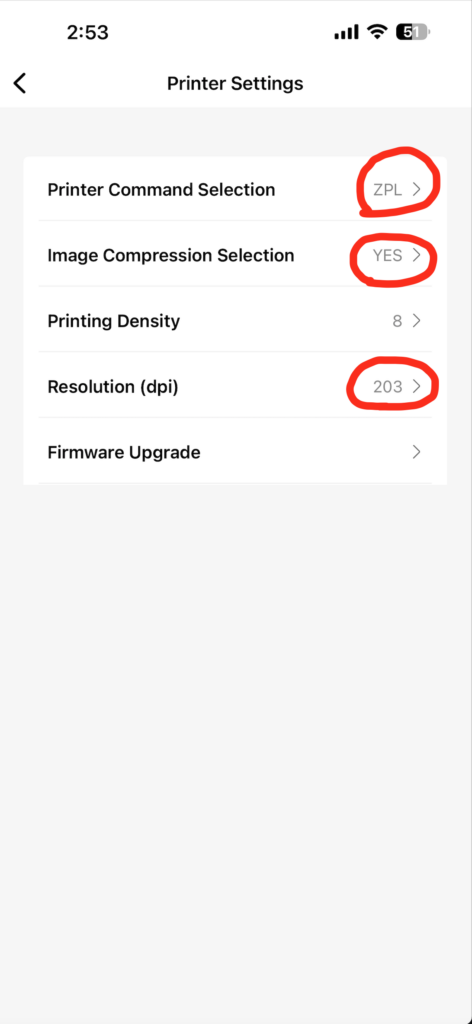

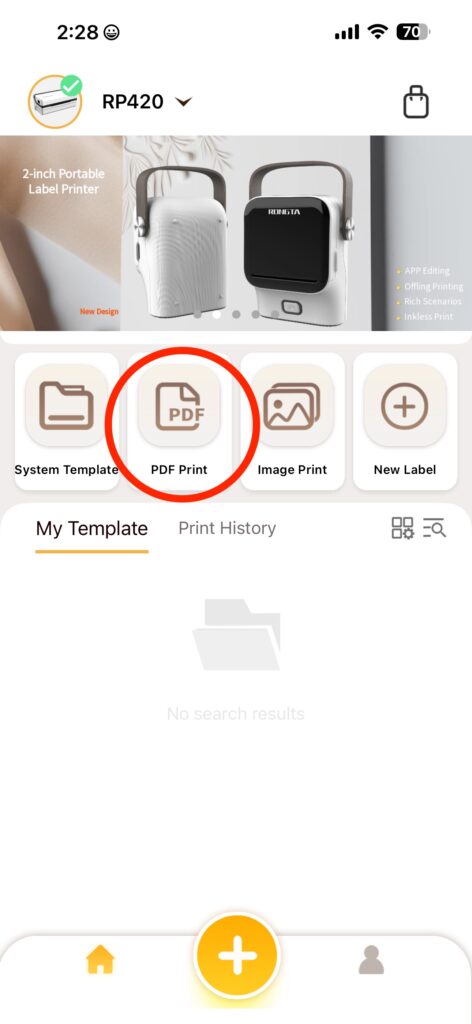

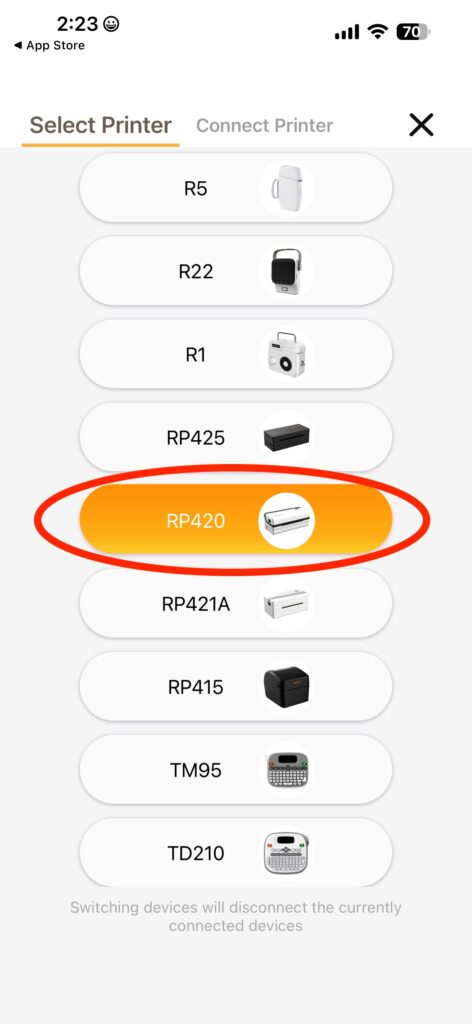

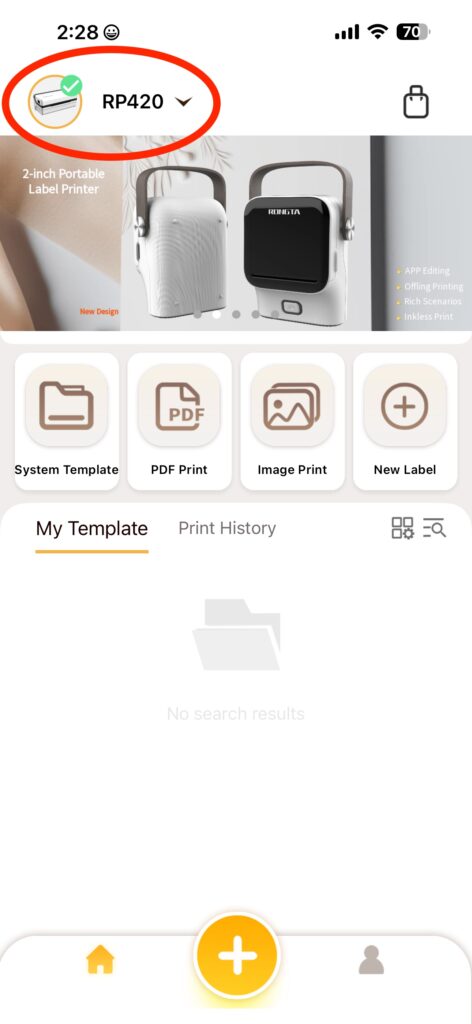

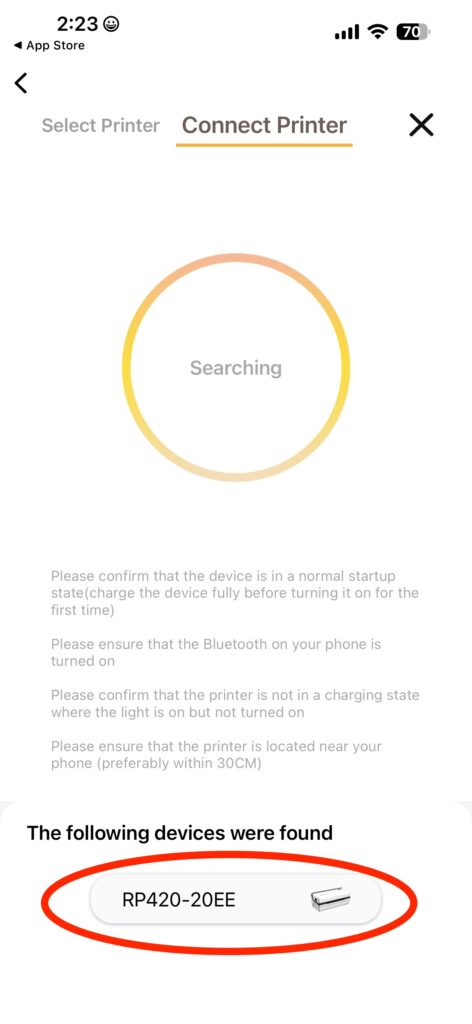

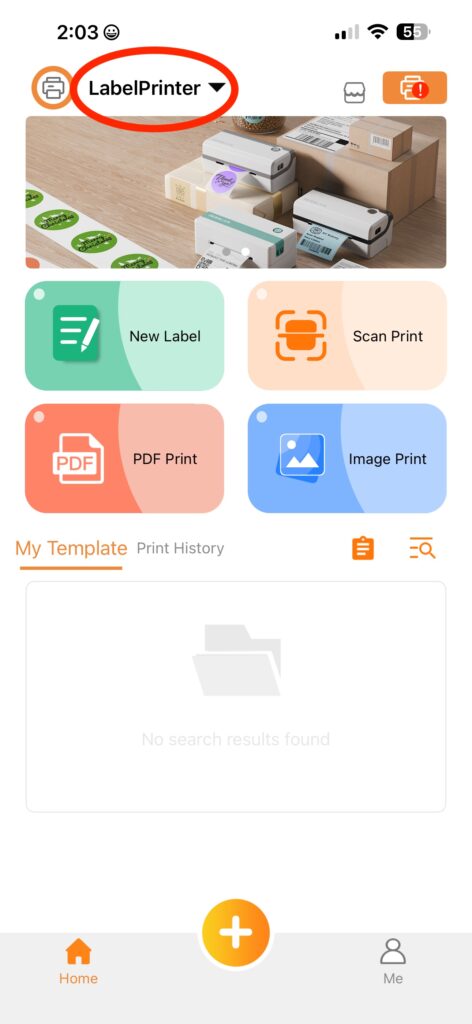

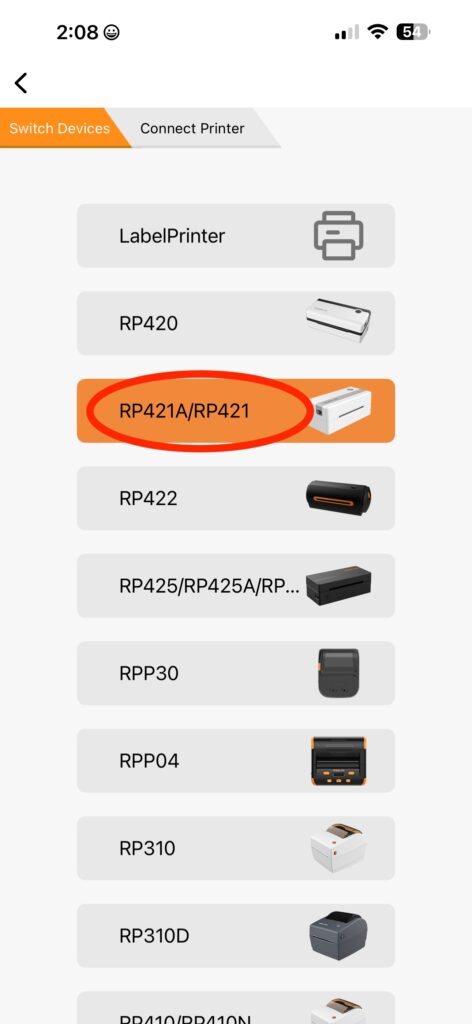

Please set Elabel App as below before Print !!

Some customers want to use phone to print Easyparcel waybill. Waybills such us qxpress is in landscape, you need to covert you waybill first and download the converted PDF, then send to Elabel app to print.  Please open this link in chrome browser https://www.pdf2go.com/resize-pdf

iPhone app Demo video

ATTENTION:  In app settings,  your printer resolution need to set as 200dpi rather than 300dpi in the video

Android app Demo video

ATTENTION:  In app settings,  your printer resolution need to set as 200dpi rather than 300dpi in the video

An alternative Android app in Android to try to print PDF waybill ( search Nokoprint in Google playstore)
